FlexStyle® Textured

EMBLEM SIZE LIMITS
Area - FlexStyle® Textured emblems can range from 0.5” x 0.5” to 5.75” x
5.75”; they cannot be any smaller or any larger.
Thickness - Varies depending on the complexity of the design from 2 mm

COLOR

BACKING
Low Melt - This backing is more commonly used on wearables and
applied with a heat press.
Pressure Sensitive - This sticker backing is commonly used on hard
goods

LIMITATIONS
Low Melt: Since the product is applied with heat, it is not
recommended for use on materials that may be heat sensitive (ex.
some nylons, silk, some plastics, leather, wool, fleece, etc.) Not recommended for weather treated materials, due to chemicals used that do not allow the emblems to adhere properly.
Pressure-Sensitive: The use of these emblems on material surfaces
that may contain an oil finish, such as silicon, TeflonTM, rough fabrics, or
any kind of outdoor goods is not recommended.

ELECTRONIC PROOF
1 Day

PHYSICAL SAMPLE (WITH MOLD INCLUDED)
2 Days

PRODUCTION TIME
Up to 500pcs: 4 days
1 additional day for every 500pcs.

Transit time not included.

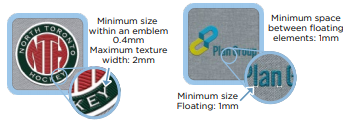

MINIMUM SIZE TEXTS
For Small texts, a very fine texture.

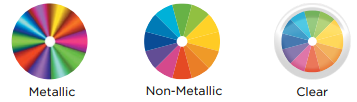

MEDIA/COLORS

TEXTURES
FlexStyle® Textured emblems are 100% textured. This includes
floating text and any other floating elements.

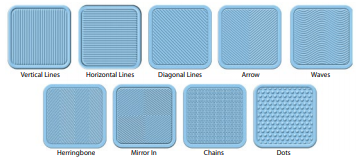

Textures are predicated by each individual design. These are the
most popular textures:

There are thousands of textures available. Our trained
artists will choose the right textures for the designs.

WASHING INFORMATION
FlexStyle® emblems will withstand at least 25 domestic washing
machine cycles at 104° F max.

SHELF LIFE
1-year shelf life before applying (room temperature controlled
environment).

SET-UP CHARGES
One-time mold charge and artwork fee.

Note: World Emblem encourages our clients to test applications of our products unto their garments. World Emblem is not responsible for damages resulting from washing and laundering of any product purchased.

Revised 04.03.24

APPLICATION VIDEOS AVAILABLE AT
www.youtube.com/worldemblem

PRESSURE-SENSITIVE
Make sure the application area is thoroughly cleaned. We recommend the
use of rubbing alcohol. Remove paper backing and press firmly in the
desired location.
Remove clear top carrier.

LOW MELT BACKING WITH A TOP HEAT PRESS: GARMENTS

1. Set the press at 355-365° F for top heat with 40-50 psi of pressure.
2. Place the garment on the heat press with the FlexStyle® silicon pad on top
   and press for 15-20 seconds to preheat the garment.
3. Place the FlexStyle® on the garment in the desired location. Place the
   Flexstyle® Rubber Application Pad over the design.
4. Press for 15-20 seconds.
5. Remove the shirt from the heat press and remove the clear cover once
   cooled.

LOW MELT HEAT SEAL ON HATS - USING THE IQ 360 HAT HEAT PRESS

1. Set the press at 275°-285° F for top heat and 315°- 320°F for bottom heat with 60-80 psi of pressure.
2. Place the hat on the heat press, leaving out the inner layer of the cap. Use the adjustment lever for a better grip.
3. Place the emblem on the desired location. To secure the emblem and preventing it from moving, use Thermal Tape.
4. Place a Flexstyle® Rubber Application Pad over the design.
5. Press for 15-18 seconds.
6. Deactivate the adjustment lever and remove the hat from the heat press.
7. Remove the Thermal Tape and the clear cover once the emblem has cooled.

DISCLAIMER
World Emblem recommends testing the best combination of heat seal
parameters before application. World Emblem is not liable for any
damages to garments during the application process.
